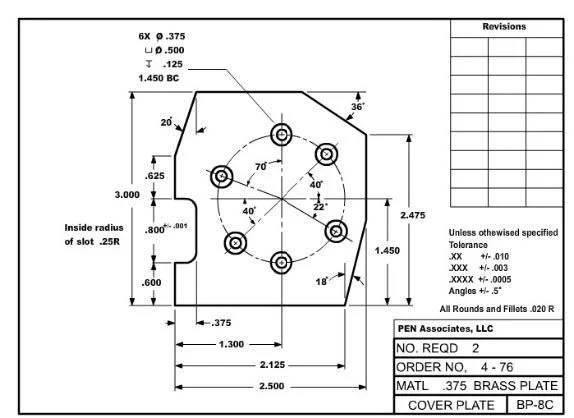

Question 1a
What is the thru hole diameter of each of the six counterbored holes?
Answer:
Question 1b
What is the diameter of the counterbore for the six holes?
Answer:
Question 1c
What is the overall width of the part?
Answer:
Question 1d
According to the drawing note, what is the inside radius of the slot?
Answer:
Sample Assessment Question
